S5 Infinity Burners V3

S5 FC Infinity Ring Burner kit(v3)

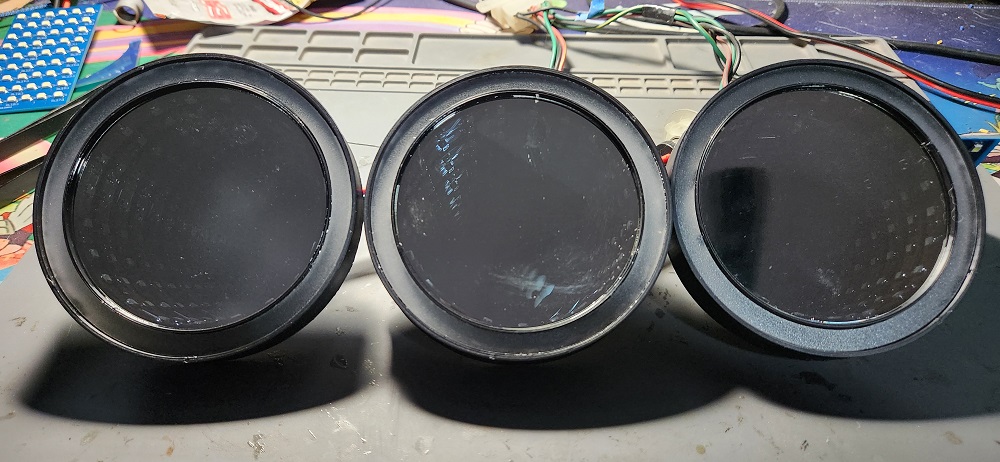

Version 3 of the Infinity FC led kit does not use a single 3d printed diffuser resulting in a more crisp and separated light pattern from the Run/brake rings.It uses a black dividing channel and special acrylic diffuser now.

ATTENTION! THESE PRODUCTS ARE MADE TO ORDER. Expect a 2-4 week turn around

Professional grade circuit boards and components designed to withstand the harsh automotive environment.

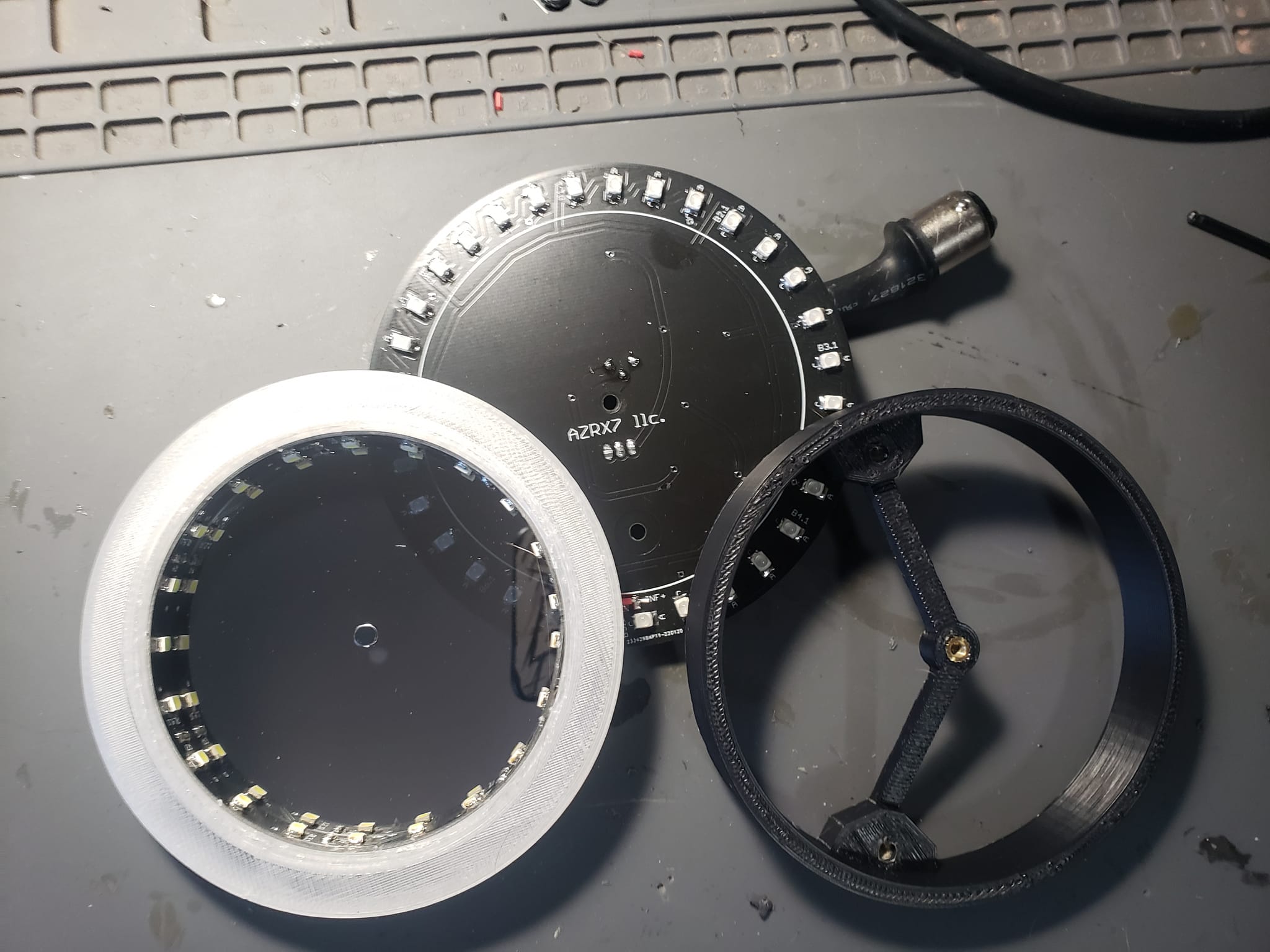

The circuit boards are made to be an almost plug and play system. Removing the lens is all that is needed to install these. The wiring uses stock bulb sockets so there is no cutting of the harness.  The circuit boards are now mounted with back plates that replace the OEM bulb reflectors.

The LED’s will be in a dangerous electrical system which can easily kill unprotected lights. All LED’s have voltage regulated circuits with diode reverse voltage protection.

Brake light brightness is a vital requirement so they use high quality automotive grade LED’s. They can easily be seen during the day even in the bright Arizona sun.

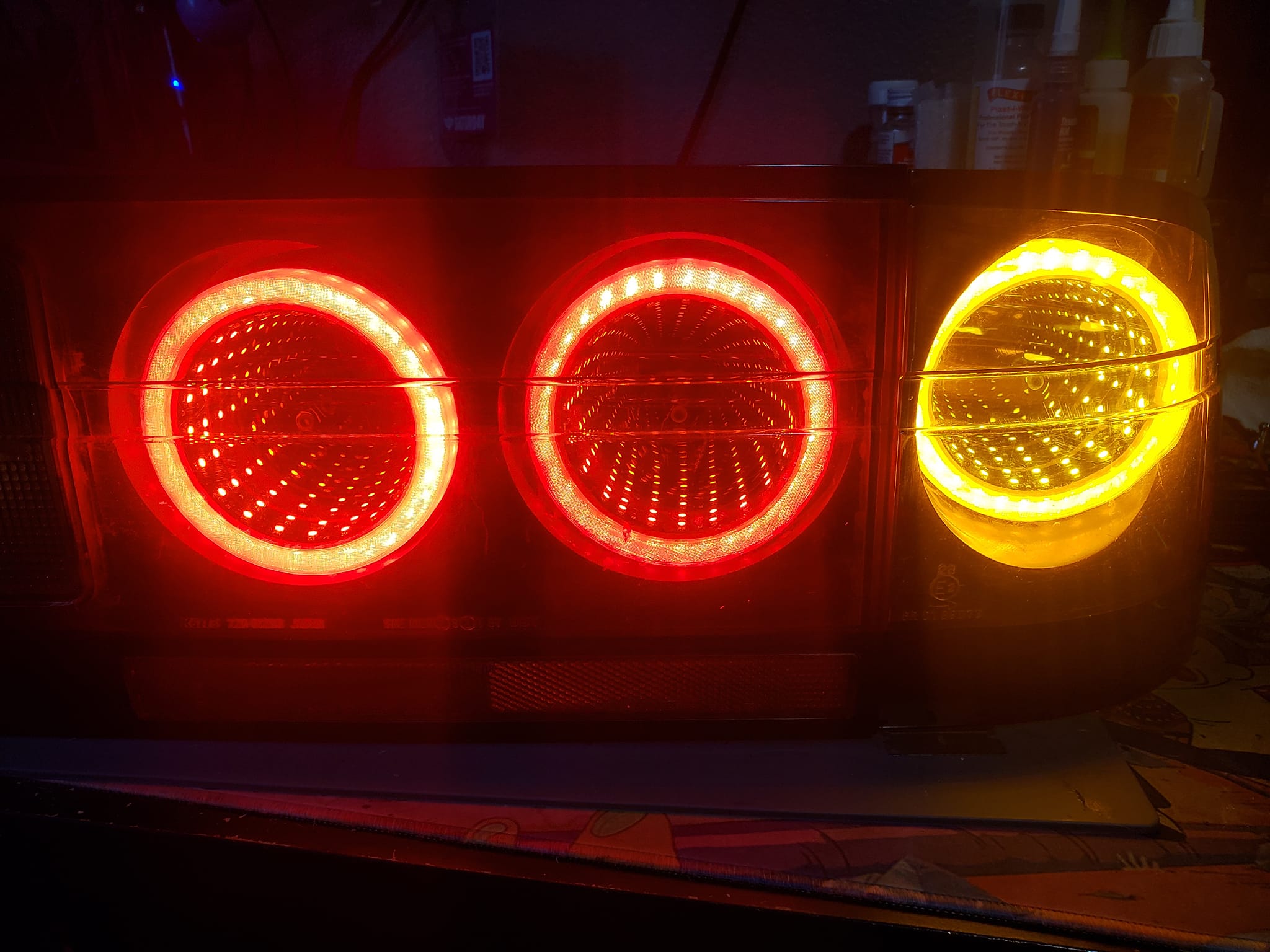

• The Infinity Edition will have a special Infinity Mirror Chamber inside the Diffusing ring.

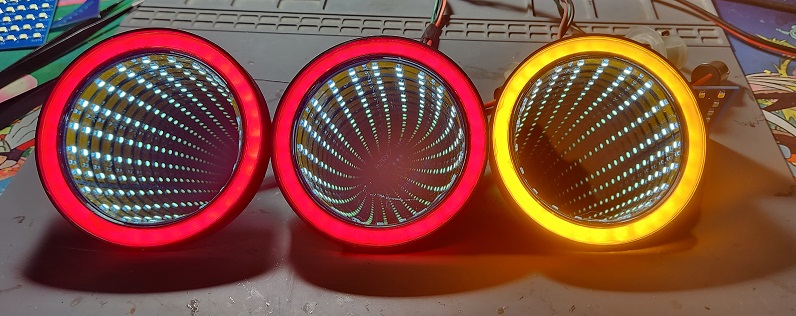

• Running lights will be an Outer Halo in the two brake circles at half brightness.

• Braking lights are the same ring but full brightness. You’re Brake warning light will illuminate due to the load difference. I do not include or recommend using load resistors on brakes due to the possibility of severe heat related to prolonged use.

• Turn signals are the Ring along with infinity effect internally. (A load resistor can be supplied for those with stock wiring to prevent “hyper-flashing”. Heat is not as big of an issue, but I will not install them for you.

• Reverse lights are NOW Bright White LED! They require some glue to be held in place due to mounting style.

The cost is a DIY price shipped.
We can install the kit for you for an additional cost along with sending the tails back. I include insurance when shipping but am not liable for Damage from Shipping or installation. Refunds or reimbursements will be done on a per transaction basis.

Local installation is an option as well.

The kit includes:
2x Turn signal boards
4x Brake and Running light boards
6x Backplates and hardware(each circle comes preassembled, just bolt them in place)

2X Reverse led panels

2x Optional Load resistors for Turn Signal Hyper flash fix

Conversion Instructions page located above in the menu.

DISCLAIMER:
These are not certified by NHTSA and are for off road/Track/Show use only.
